Met geintegreerde sensor FN voor Ferro en Non ferro substraat

Hoogwaardig ergonomisch instrument, voor instant laagdikte meten

Voor alle niet-magnetische coatings zoals Verf, Emaille, Chroom, Galvanisc zink op staal

Voor alle isolerende coatings zoals Verf, geanodiseerde lagen, Keramiek op non-ferro metalen zoals Aluminium, Koper, Zamak, Messing, etc.

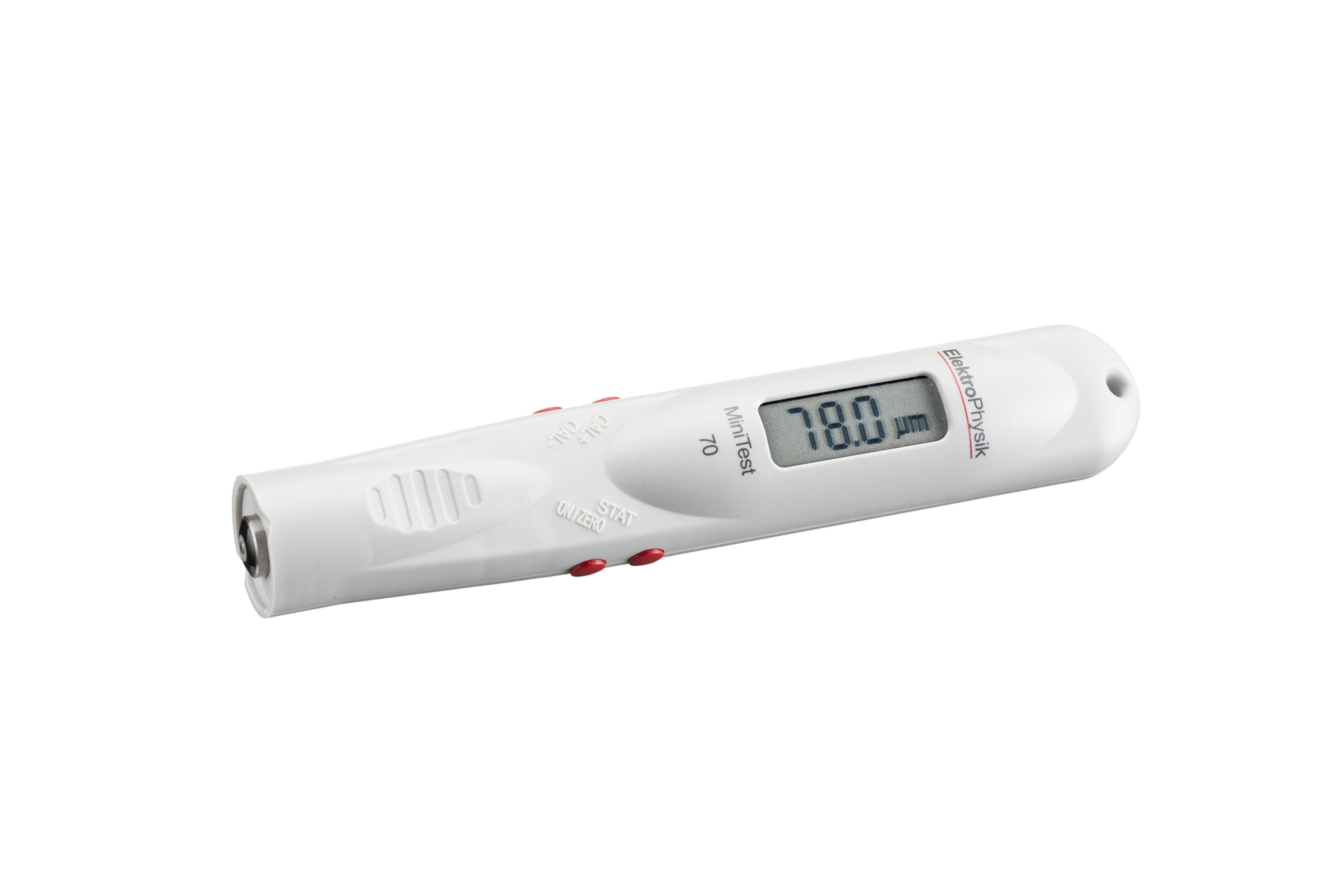

Laagdiktemeter MiniTest 70 FN

SKU: 80-125-0100

€870.00

Quantity

Measuring range F: 0 … 3 mm/120 mils / N: 0 … 2.5 mm/100 mils
Measuring principle magnetic-induction magnetic-induction/eddy currents
Signal processing Sensor integrated 32-bit signal processing (SIDSP®)
Accuracy 1 ± (1.5 μm + 3 % of reading) with 1-point calibration
± (1.5 μm + 2 % of reading) with 2-point calibration
± (0.06 mils + 3% of reading) with 1-point calibration
± (0.06 mils + 2% of reading) with 2-point calibration
Repeatability 1 ± (1 μm + 1 % of reading) / ± (0.04 mils + 1% of reading)
Low range resolution 0.5 μm; 0.02 mils
Minimum curvature radius convex 5 mm; 0.2”
Minimum curvature radius concave 40 mm; 1.60”
Minimum measuring area 3 Ø 20 mm
Minimum substrate thickness 3 F: 0.5 mm; 0.02” / N: 0.04 mm; 0.0016”
Measuring units metric/imperial switchable
Calibration modes 1-point calibration, 2-point calibration
Statistics n, x—, s, Min, Max
Operating temperature range -10°C … +60°C, 14°F…140°F
Storage temperature range -20°C … +70°C, -4°F…158°F
Power supply 1 x AA (Mignon)-battery
International standards DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
Dimensions approx. 157 mm length, Ø 27 mm; 5.2” length, Ø 1.06”
Weight incl. battery approx. 80 g, 2.8 oz
De MiniTest 70FN laagdiktemeter wordt als complete set geleverd met:

MiniTest 70FN

Stalen en aluminium testplaten

Kalibratie folie

Handleiding

Bevestigingskoord

Nylon heuptasje
